FEATURES：
- Dual, and Static Plane Microscale Balancing
- Soft Bearing, High Precision
- Automatically Mark Unbalance Angle
- RS232 Output, Connect to Auto Balancing Machine
- Simple Jig, Fast Model Changing
- AC High Precision Servo Motor
- USB Plug and Play Connectivity
- Belt Drives, Stable and Precise Balancing Speed
- Automatically Position the Unbalance
- Built-in Program to Measure Nature Frequency
- Built-in Program to Measure Background Noise
- Auto Save Measurement Result
- Save G R & R Sheet
- ISO 1940 Calculator
- Add / Remove Mass to Balance
- Laser Tachometer
| ROTA - 01 Technical Specifications | |
| Dimension | 450mm x 380mm x 350mm |
| Weight | < 43.0Kg |
| Power | AC 95 - 250V |
| Power consumption | < 350.0 Watt. |
| Rotor Weight | 10g – 50g |
| Rotor Diameter | 8 - 25mm |
| Shaft diameter | 3 - 6 mm |
| Distance between V-Cut | 10 - 50mm |
| Working Humidity | 25% - 80% |
| Rotor Type | Dual Bearing Rotor |
| No.# of Balancing Planes | Single, Dual, Triple Planes |
| Type of Sensor | Accelerometer |
| No.# of Vibration Sensor | 2 Sensors 100mV/g |
| Go / No Go Function | Yes |
| Radar Graph | 1, 2, 3 Planes |
| Static & Couple | Yes |
| ISO 1940 Compliance | Yes |
| Spectrum Analyzer | 12.8KHz (3200 lines) |
| FFT Windowing | Hanning/ Blackman |
| Auto Gain Adjustment | Yes |

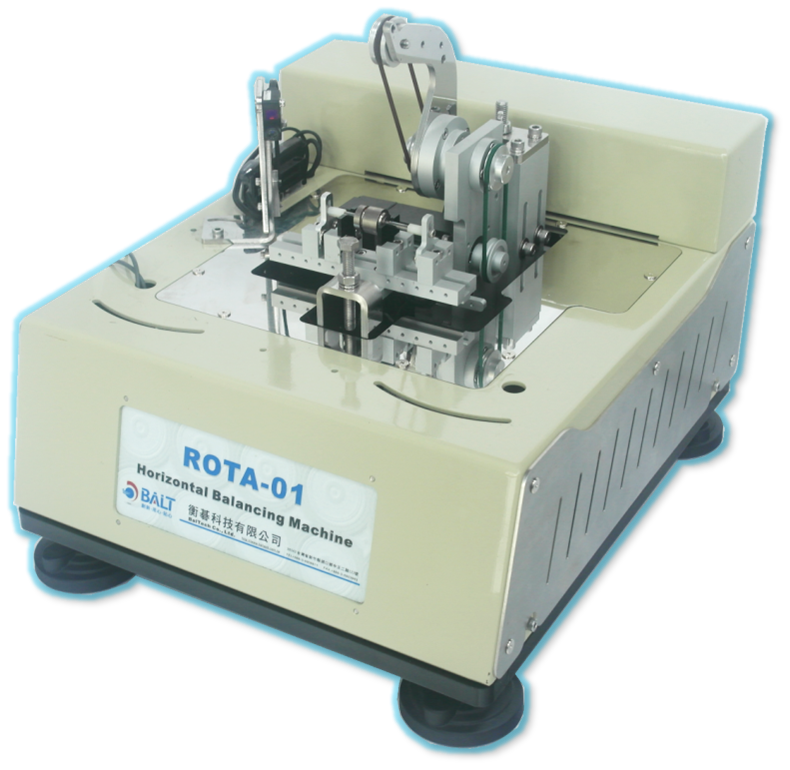

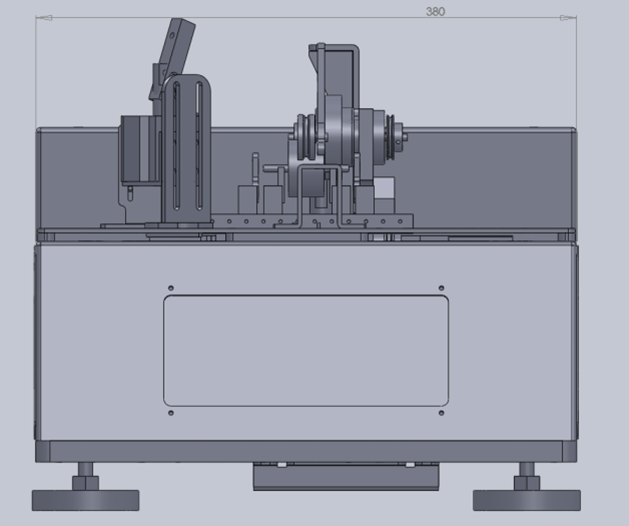

ROTA - 01 Appearance and Size
