FEATURES：
- High Precise Chuck, High Stability
- Low GRR, High Repeatability
- Single Plane & Dual Planes Balancing
- Static and Couple Unbalance Display
- Two or Three Radar Vector Diagram
- Built-in High Performance Servo Motor

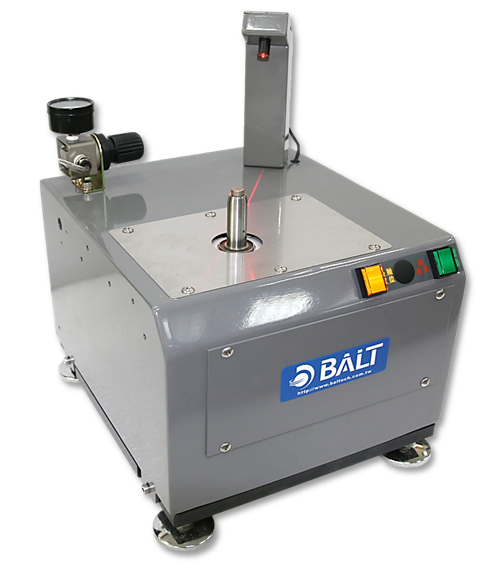

| BT-3600-K1 Specifications | |||||
| Dimension (mm) | 300 x 265 x230 | No.# of Balancing Planes | Single, Dual, Triple Planes | ||
| Weight (Kg) | < 30.0 | Balancing Style | Vertical | ||
| Power Supply | AC 190- 250V | GUI Language | English / Chinese | ||
| Power Consumption (Watt.) | < 580 | Go / No Go Function | Yes | ||
| Measuring Range (mG) | 0.00 – 50.00 | Radar Graphics | 1, 2, 3 Planes | ||
| Speed Range (RPM) | 2,100– 5,000 | Static & Couple | Yes | ||
| External Interface | USB 3.0 | ISO 1940 Calculator | Yes | ||
| Working Temperature (°C) | 0 – 55 | Excel Format Export | Yes | ||
| Working Humidity | 25%- 80% | Auto GR&R Table | Yes | ||
| Max. Fan Load (gram) | 300.0 | Database | > 100,000 sets | ||
| Chuck Range (mm) | 3, 4, 5, 6 | Reference Indicator | Laser | ||
Ordering Information
- BT-3600-K1-P1 Single Plane Active Balancing Machine
- BT-3600-K1 Dual-Plane Active Balancing Machin
