FEATURES：
- Accuracy, Stable, Robust
- High Precision Chuck Module
- Standard Rotor Calibration
- Single/Dual/Triple Planes
- Rotor, Metal Case, Magnetics
- Add or Remove Unbalance
- Servo Motor Driving
- Go/NoGo Auto Decision
- Fast USB 2.0 Plug and Play
- Low Cost, High Performance
- Graphical Radar Diagrams
- High-precise Measurement
- Standard Rotor Calibration－National Traceable Calibration
- ISO1940 Unbalance－International Unbalance Standard
- Multiple Purpose Tools－Tool kits for different work-piece
- High Throughput－Accelerate mass production line
- Add(+) or Remove(-)－Different correction methods

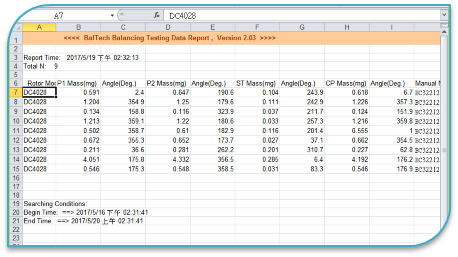

- Excel format Data Report－Sharing reports more flexible
- Go/NoGo Auto Decision－Avoid human error, zero failure

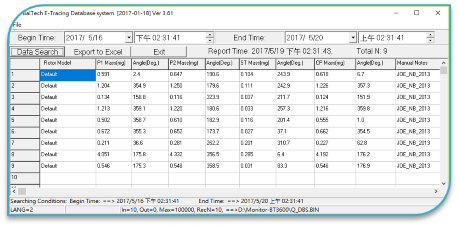

- On-line data-base, SPC－Record and generate reports
- Environmental Monitoring－Online monitoring environments
- Noise Spectrum Analyzer－Spectrum give more messages
- Standard Rotor Calibration－Check and verify machines anytime
- Best tool for verification－Standards check anywhere, anytime
- Precise, Robust collet－Highly Accurate collet, < 1.0 um
- Wide range collet, 1.2–3.2mm－Measuring work-piece more flexible
- Fan metal case Q.C.－Raw materials unbalance I.Q.C.
- Expanding Collet module－Enhance instrument functions
- Graphical Radar Display－User friendly interface
- Online help－No training cost, online coach
- Multi-Language－World-wide HMI interface
- Single/Dual/Triple radar－Flexible, quick, easy production
| BT–3600-KS1 Advantage Characteristics | |||||
| Unbalance detection | Single/Dual/Triple | Units display | ug/mg/g/ kg | ||
| Graphical HMI | Radar Diagram | Measuring mode | Precise / Fast | ||
| Multi-language | English/Chinese | Clay timer alert | Yes | ||
| Operating System | Win7/8/10 | Auto components | Yes | ||
| OK/NG auto decision | Yes | Standard rotor verify | Yes | ||
| Noise monitoring | Yes | Add or removing unbalance | Yes | ||
| Auto positioning | Yes | ISO 1940 Calculator | Yes | ||
| Spectrum analyzer | Yes | Excel data format export | Yes | ||
| Parameter file system | Yes | Online database system | Yes | ||
| RS232 data output | (option) | Chuck operation counter | Yes | ||
| Counter and statistics | Yes | Last result radar diagrams | Yes | ||
| BT-3600-KS1 Hardware Specifications | |
| Suitable fan size (work-piece) | 1.2 CM – 8.0 CM (8020) |
| Type of unbalance detection | single/dual/triple planes measurement |
| Maximal fan weight (work-piece) | < 50.0 gram |
| Maximum measuring speed | 2,100 - 5,000 (rev/min, RPM) |
| Resolution of rotating speed | < 2% |
| Fan shaft diameter range | 1.2 mm – 3.2mm |
| Automatic positioning | Server motor control |
| Reference position indicator | Linear laser indicator |
| Servo motor and driver | < 580.0 Watt. (AC servo) |
| Controller connection type | USB 2.0 Plug and Play |
| External communication interface | RS232 (option) |
| Mechanical size (L x W x H) | 300.0 x 265.0 x 230.0 (mm) |
| Weight of balancing machine | < 30.0 Kg |
| Power requirement | 190 - 250V (Single phase , 50 or 60Hz) |
| Air source pressure requirement | 5.0 – 6.0 Kg/cm^2 |
| Environmental temperature | 10 – 55 degree C |
| Environmental humidity | 25% - 80% |
